RLPRO1200

RLPRO1200
Maximum-Coverage 9-Wavelength Red & Near-Infrared Light Therapy Panel
Maximum coverage. Nine wavelengths. Professional-scale performance.
The Redwaves RLPRO1200 is the largest upright panel in the Redwaves PRO collection, combining extensive full-body coverage with advanced nine-wavelength technology and individual wavelength control.
Key Benefits at a Glance
9 individually adjustable wavelengths
480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
High light intensities of up to 190 mW/cm² at 6 inches
864 dual-chip LEDs
Touchscreen, remote & Bluetooth
1440W actual power
1840mm full-height design

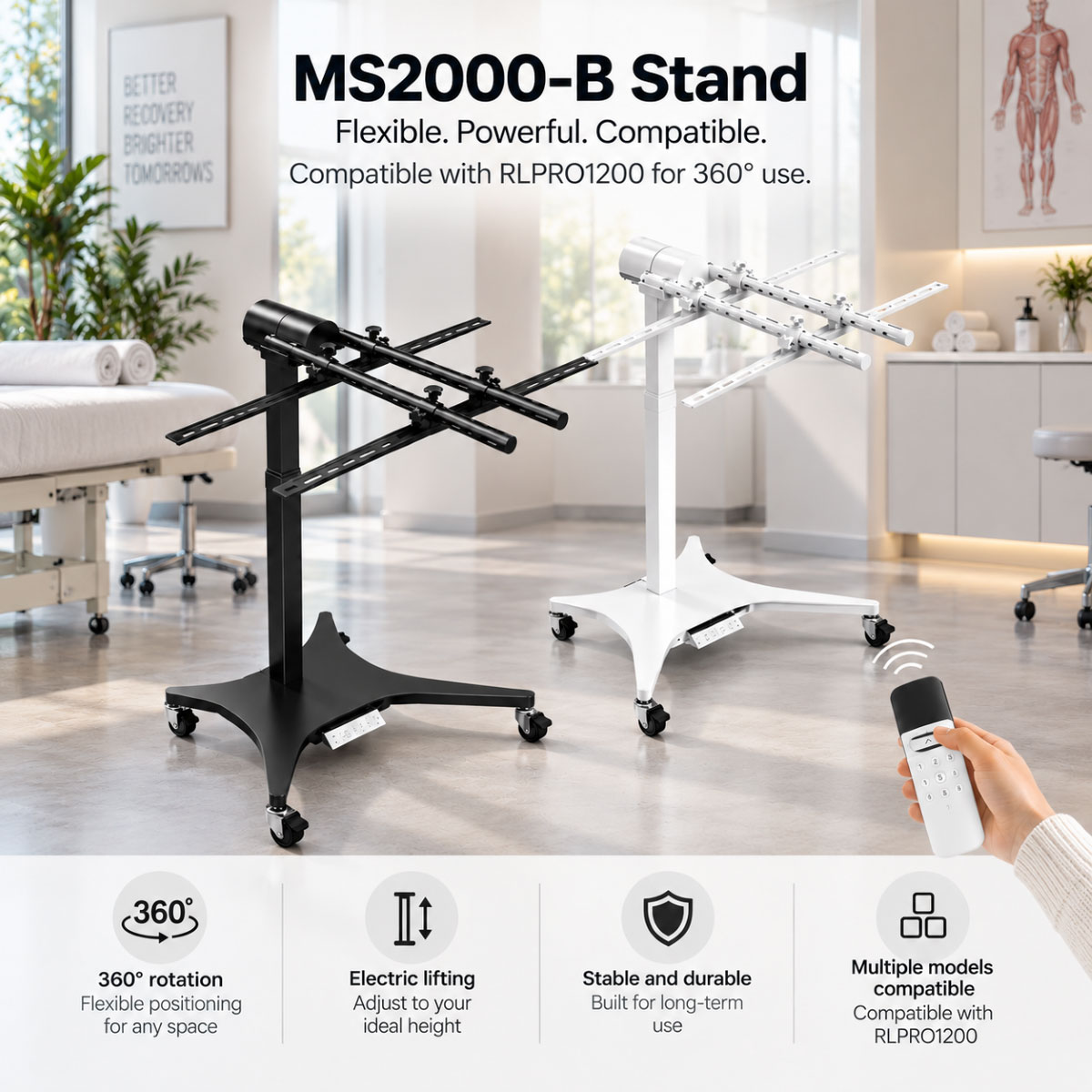

(Stand sold separately MS 2000-B)

• Free UK Delivery – estimated 9-11 weeks
• 3 Year Manufacturer Warranty – UK customer support from Redwaves
• Secure Payment – secure online checkout

Delivery & Returns | Warranty

Which Redwaves Panel Is Right for Me?
Every Redwaves PRO panel incorporates the same advanced nine-wavelength spectrum and individual wavelength control.

RLPRO1200 — Maximum Full-Body Coverage
At 1840mm tall, the RLPRO1200 is designed for customers and professional environments where maximum upright coverage is the priority.
It combines 864 dual-chip LEDs, 1440W actual power and the complete nine-wavelength PRO spectrum within a single full-height panel.
Why choose the RLPRO1200?
Choose it if you want the largest upright panel in the Redwaves PRO range, with maximum full-body coverage for a premium home setup or professional environment.

9 Wavelengths Across a Full-Height System
480nm • 590nm • 630nm • 660nm • 670nm • 810nm • 830nm • 850nm • 1060nm
The RLPRO1200 combines nine wavelengths across the visible and near-infrared spectrum within the largest upright format in the Redwaves PRO collection.
Different wavelengths interact with tissue at different depths and continue to be explored within photobiomodulation research.

Individual Wavelength Control
Each wavelength can be independently adjusted from:
1–100%
This enables users to customise both wavelength configuration and intensity according to their preferred settings.

High Irradiance Output
The RLPRO1200 delivers a manufacturer-stated irradiance of approximately:
180–190 mW/cm² at 6 inches (15cm)
Manufacturer-stated irradiance measured at 6 inches (15cm). Measurements can vary according to equipment, operating settings and measurement conditions.

864 Dual-Chip LEDs
The RLPRO1200 incorporates:
864 Dual-Chip LEDs
with:
1440W ±10% actual power
At 1840 × 420mm, it adds 310mm of height and 144 additional dual-chip LEDs compared with the RLPRO1000.
This makes it the maximum-coverage upright panel within the Redwaves home and professional collection.

Adjustable Pulse Technology
The RLPRO1200 supports adjustable pulse frequencies from:
1–1000Hz
Pulse frequency can be individually adjusted by wavelength, providing advanced configuration alongside straightforward everyday operation.

Intelligent Controls
Touchscreen Control — manage wavelengths, intensity, pulse and session settings.
2.4G Remote Control — convenient remote operation.
Bluetooth — additional connectivity.

Designed for Home & Professional Environments
The RLPRO1200 sits naturally across both sides of the Redwaves collection.
For home users, it represents our largest upright full-body panel.
For professional users, its full-height format, high LED count and advanced controls make it suitable for integration into wellness, recovery and professional treatment environments.
This also provides a natural stepping stone between the Redwaves home collection and our larger dedicated commercial systems.

Technical Specifications
Specification RLPRO1200
LED Configuration 864 Dual-Chip LEDs
Wavelengths 480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
Irradiance Approx. 180–190 mW/cm² @ 6 inches (15cm)*
Actual Power 1440W ±10%
Dimensions 1840 × 420 × 65mm
Input Voltage 100–240V AC
Working Current 12A ±5% / 220V; 16A ±5% / 110V
Frequency 50/60Hz
Lens 30° / 60°
Intensity / Dimmer 1–100%, individually adjustable by wavelength
Pulse Frequency 1–1000Hz
Control Touchscreen
Remote Control 2.4G
Connectivity Bluetooth
Housing Iron
Colour White
Gross Weight Approx. 29.4kg ±0.5kg

Manufacturer-stated irradiance measured at 6 inches (15cm).
What’s Included?
1 × RLPRO1200 panel
Power cable and plug
2.4G remote control
Protective glasses
User manual
