RLPRO2000L

Professional Full-Body 9-Wavelength Light Therapy System
Commercial-scale coverage. Nine wavelengths. Advanced professional control.
The Redwaves RLPRO2000L is a large-scale professional red and near-infrared light therapy system designed for businesses seeking extensive full-body coverage and advanced control.
With 1,152 dual-chip LEDs, nine individually adjustable wavelengths and 1650W actual power, it brings Redwaves PRO technology into a substantial commercial format.
Key Benefits at a Glance
9 individually adjustable wavelengths
480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
1,152 dual-chip LEDs
1650W actual power
Advanced individual wavelength control
Adjustable intensity and pulse
Touchscreen, remote, Bluetooth & App connectivity
Large-scale professional full-body format
Can be used independently or paired with the RLPRO2000L-B

• Free UK Delivery – estimated 9-11 weeks, specialist order, confirm before ordering.
• 3 Year Manufacturer Warranty – UK customer support from Redwaves
• Secure Payment – secure online checkout

Delivery & Returns | Warranty

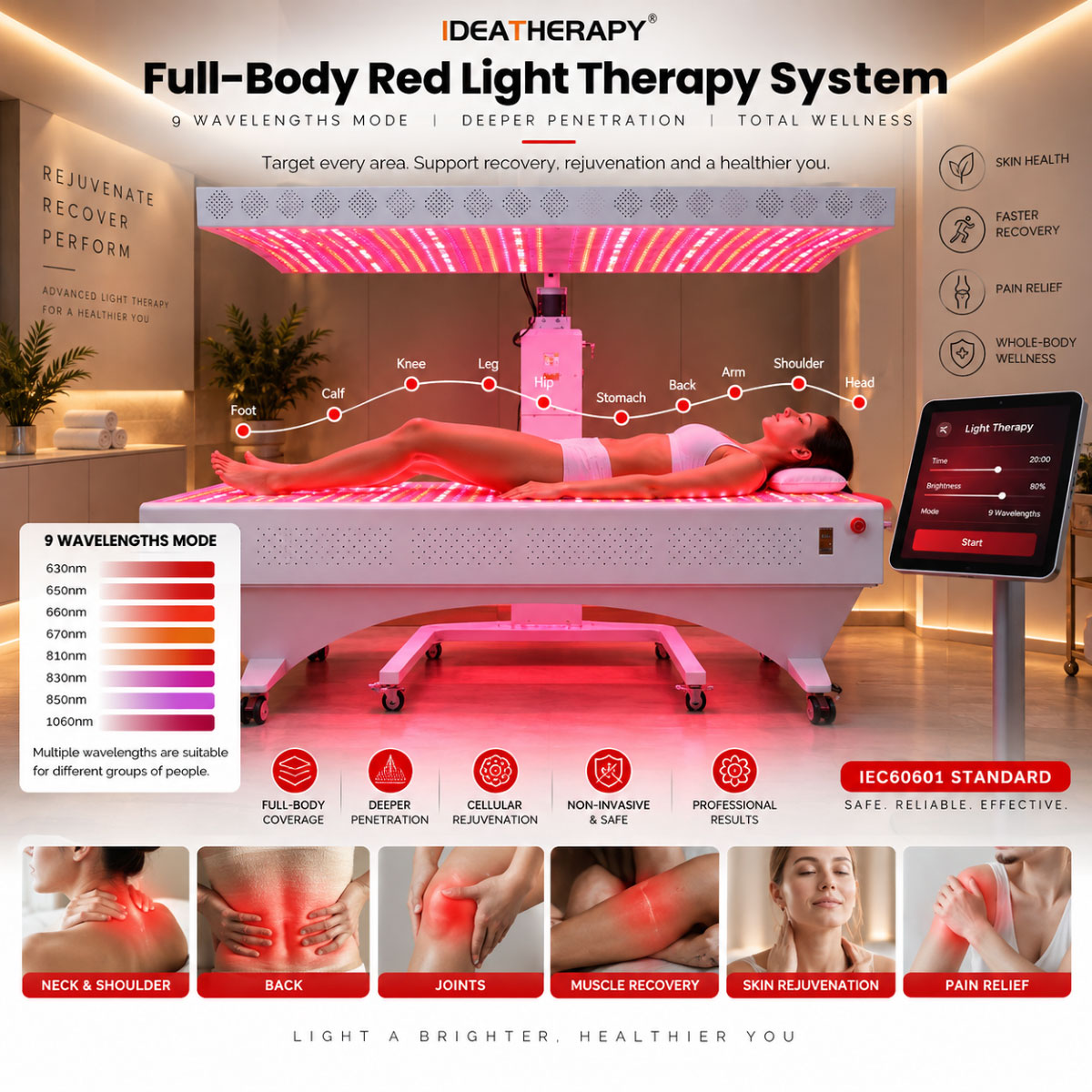

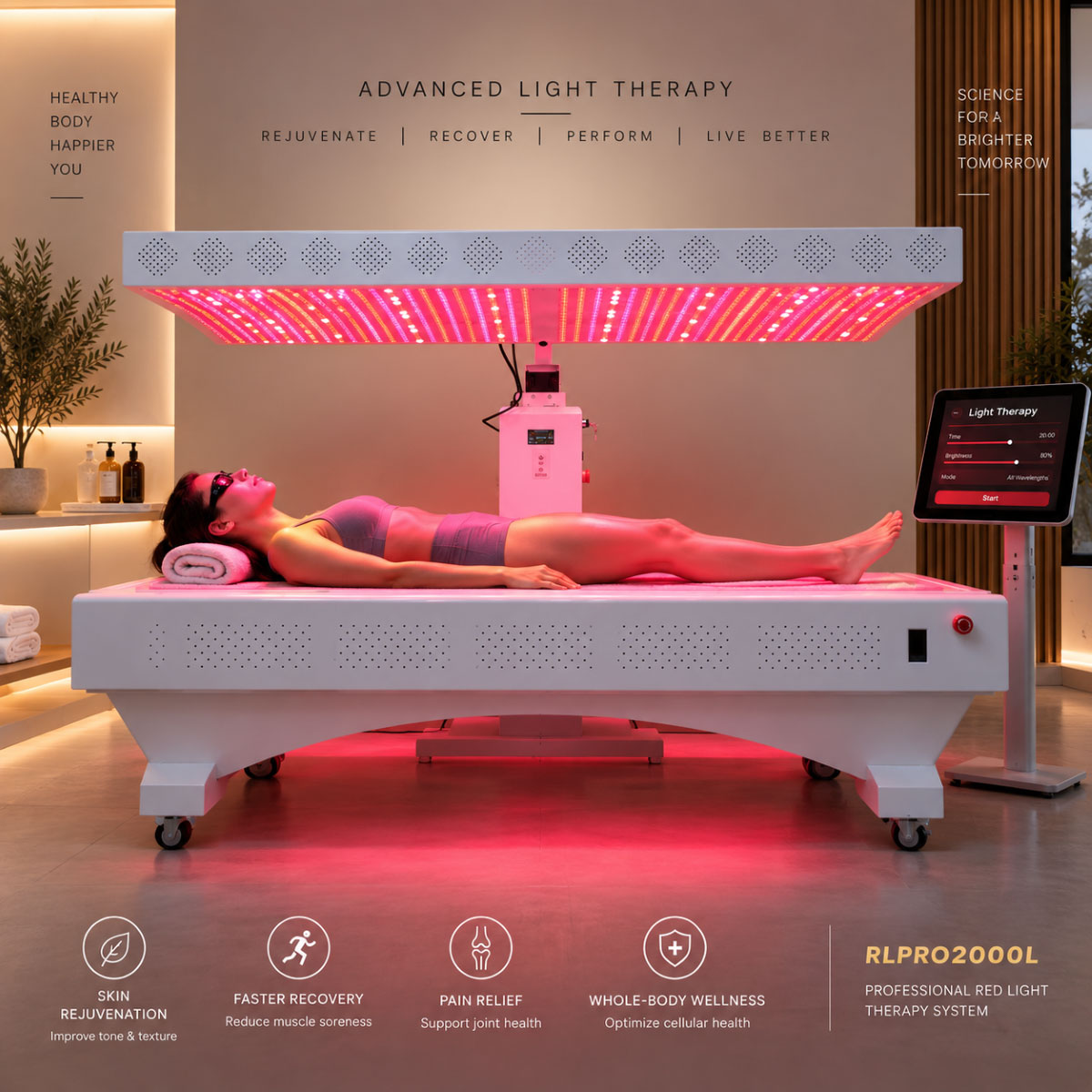

Professional Full-Body Light Therapy
The RLPRO2000L takes the technology of the Redwaves PRO collection into a significantly larger professional format.
At approximately 1924mm long × 900mm wide, with 1,152 dual-chip LEDs, it has been designed to provide extensive illuminated coverage within commercial wellness environments.
It can operate as a complete standalone system, or be paired with the RLPRO2000L-B to create an even more substantial combined professional configuration.

9-Wavelength Technology
480nm • 590nm • 630nm • 660nm • 670nm • 810nm • 830nm • 850nm • 1060nm
The RLPRO2000L incorporates the same broad nine-wavelength spectrum found across the Redwaves PRO collection.
The system combines visible and near-infrared wavelengths within one configurable professional platform.
Different wavelengths continue to be explored within photobiomodulation research, while the advanced controls of the RLPRO2000L allow the system’s wavelength configuration to be customised according to preferred settings.

1,152 Dual-Chip LEDs
At the heart of the RLPRO2000L are:
1,152 Dual-Chip LEDs
combined with:
1650W ±10% actual power
The large LED array distributes light across a substantially greater area than a conventional upright home panel, making the system particularly suited to professional environments where extensive full-body coverage is required.

Individual Wavelength Control
Each of the nine wavelengths can be independently adjusted from:
1–100%
This provides professional users with considerably greater control over wavelength selection and intensity than a simple fixed-spectrum system.
Rather than being limited to one predetermined combination of wavelengths, the RLPRO2000L can be configured according to the user’s preferred session settings.

Advanced Pulse Technology
The RLPRO2000L offers an extended pulse-frequency range of:
1–10,000Hz
with individual wavelength adjustment.
This provides an additional level of configuration for professional users wanting access to the system’s advanced settings.
For straightforward operation, these advanced settings do not need to be adjusted for every session.

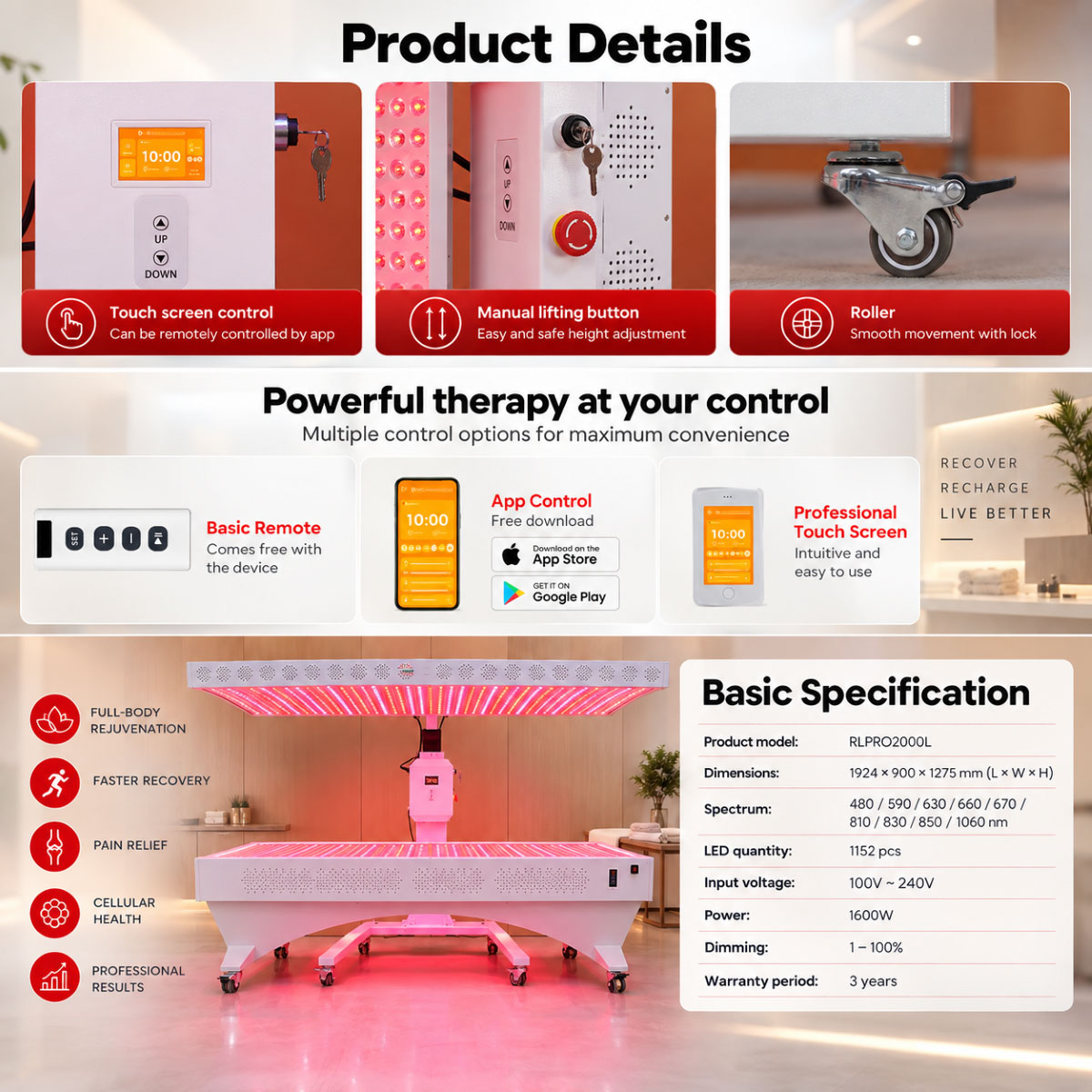

Intelligent Professional Controls
The RLPRO2000L provides several ways to interact with the system.
Touchscreen Control
Manage wavelength selection, intensity, pulse and session settings directly from the system.
2.4G Remote Control
Convenient remote operation.
Bluetooth
Wireless connectivity provides additional control options.
App Connectivity
Additional app functionality provides further flexibility within a professional environment.

Designed for Professional Environments
The RLPRO2000L has been selected for businesses looking to introduce a premium full-body light therapy experience.
Its scale and configuration make it suitable for environments such as:

• Wellness centres
• Spas
• Recovery facilities
• Premium gyms
• Beauty and aesthetics environments
• Professional wellness practices

Its substantial format also gives businesses the opportunity to create a dedicated red light therapy experience, rather than simply adding a smaller panel to an existing room.

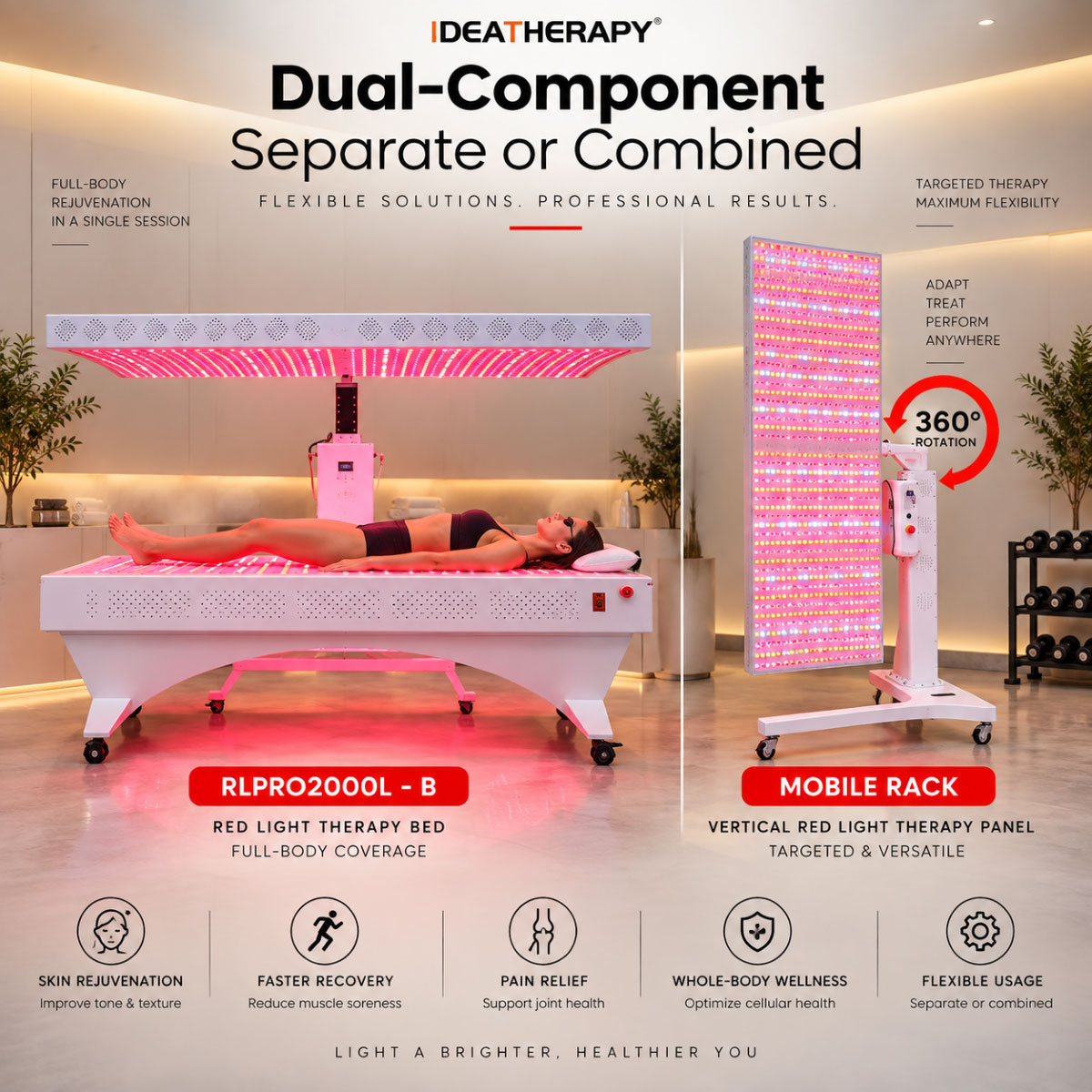

One System or Two?
The RLPRO2000L and RLPRO2000L-B have been designed so that businesses can select the configuration that best suits their space and service model.

Choose the RLPRO2000L if…
You want a large-scale professional system with an open full-body configuration and advanced control.
Choose the RLPRO2000L-B if…
You prefer a dedicated lying-down bed format designed around a relaxed full-body customer experience.
Combine both systems
For businesses wanting the most substantial Redwaves commercial configuration, the two systems can be paired.
Together they provide:
2,304 dual-chip LEDs
3,300W combined actual power
Nine-wavelength technology across both systems
This also gives businesses flexibility to begin with one system and add the second later.

Technical Specifications
Specification RLPRO2000L
LED Configuration 1,152 Dual-Chip LEDs
Wavelengths 480 / 590 / 630 / 660 / 670 / 810 / 830 / 850 / 1060nm
Actual Power 1650W ±10%
Dimensions 1924 × 900 × 1275mm
Input Voltage 100–240V AC
Working Current 14A ±5% / 220V; 16A ±5% / 110V
Frequency 50/60Hz
Lens 30°
Intensity / Dimmer 1–100%, individually adjustable by wavelength
Pulse Frequency 1–10,000Hz, individually adjustable by wavelength
Control Touchscreen
Remote Control 2.4G
Connectivity Bluetooth & App
Housing Iron
Colour White
Gross Weight Approx. 116kg ±0.5kg

What’s Included?
1 × RLPRO2000L professional system
Power cable and plug
2.4G remote control
Protective glasses
User manual
